INDUSTRIAL PCBOX:
STRONG and FLEXIBLE

Ready to collect data and store it in the cloud

a decorative graphic representing cloud technologies

PCBOX-Gateway-InCloud40

  • a fanless industrial PC
  • your local hub for capturing, displaying, and analyzing the data from your machines
  • a powerful and compact solution for industrial data collection and storage needs
  • ready to integrate with any ERP or CMS
  • large data storage capabilities, designed for smart factories

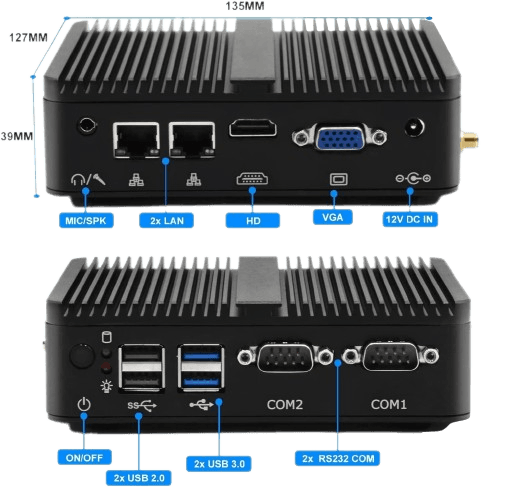

    the hub PCBox with all the ports labelled as in the list on this page
  • Technical specifications

    CPU: Intel Celeron J4125, 2.0 GHz up to 2.70 GHz, 4 MB cache, 4 cores
    RAM: DDR4 in 204-pin SO-DIMM slot, up to 32GB
    Storage: 1x SSD MSATA, 1x 2.5" HDD
    Connectivity: WiFi with double antenna, Bluetooth 4.0
    Ports: 1xHDMI, 1xVGA, 2xUSB3.0, 2xUSB2.0, 2xRS232 serial, 2xRJ45 Gigabit LAN, audio jack, 12V DC in
    Housing: Aluminum case
    Noise level: Low, due to fanless system
    Operating temperature: 0-70°C (32-140°F)
    Operating humidity: 10-85% (no condensation)
    Language: English preinstalled (custom language installations available)
    Operating System: Windows 10 Pro or Ubuntu Linux preinstalled
    Dimensions: 135x127x39mm (5.31x5.0x1.54in)
